Process engineering
MDKLSHProcess 2.0.0
Design, size and simulate a plant, then see it in 2D and 3D.
- Windows 10 and 11
- English and French
- Works offline
- Local AI assistant
- Server edition
In short
What the application does
MDKLSHProcess supports an industrial project from start to finish: process choice, equipment sizing, mass and energy balances, dynamic P&ID simulation, a 3D plant and a complete report. Four sectors are covered: food, mining and metallurgy, oil and gas, energy and utilities. The server edition follows a real plant and watches its alarms.
Uses
When to use it
Mining and metallurgical plants

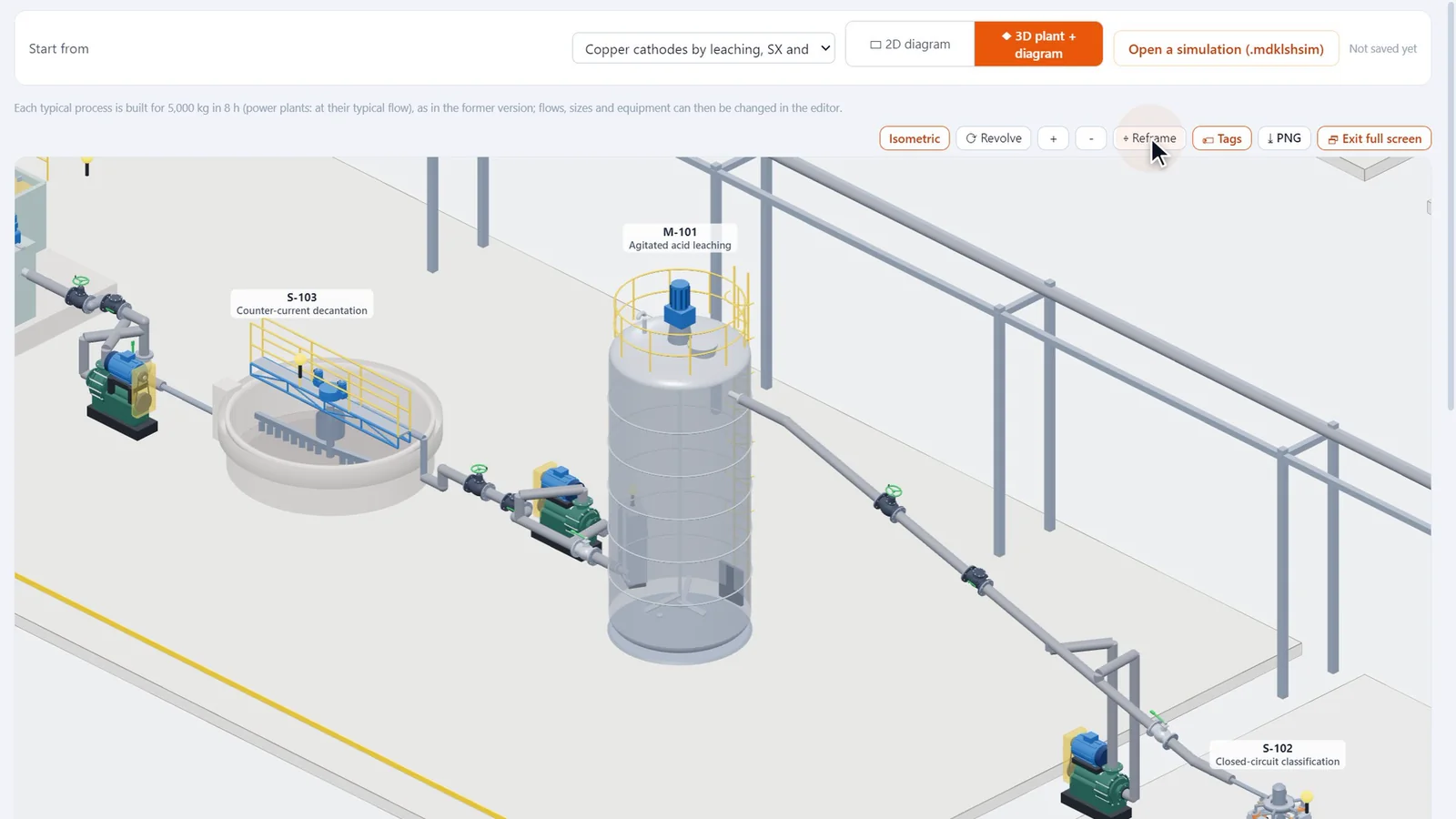

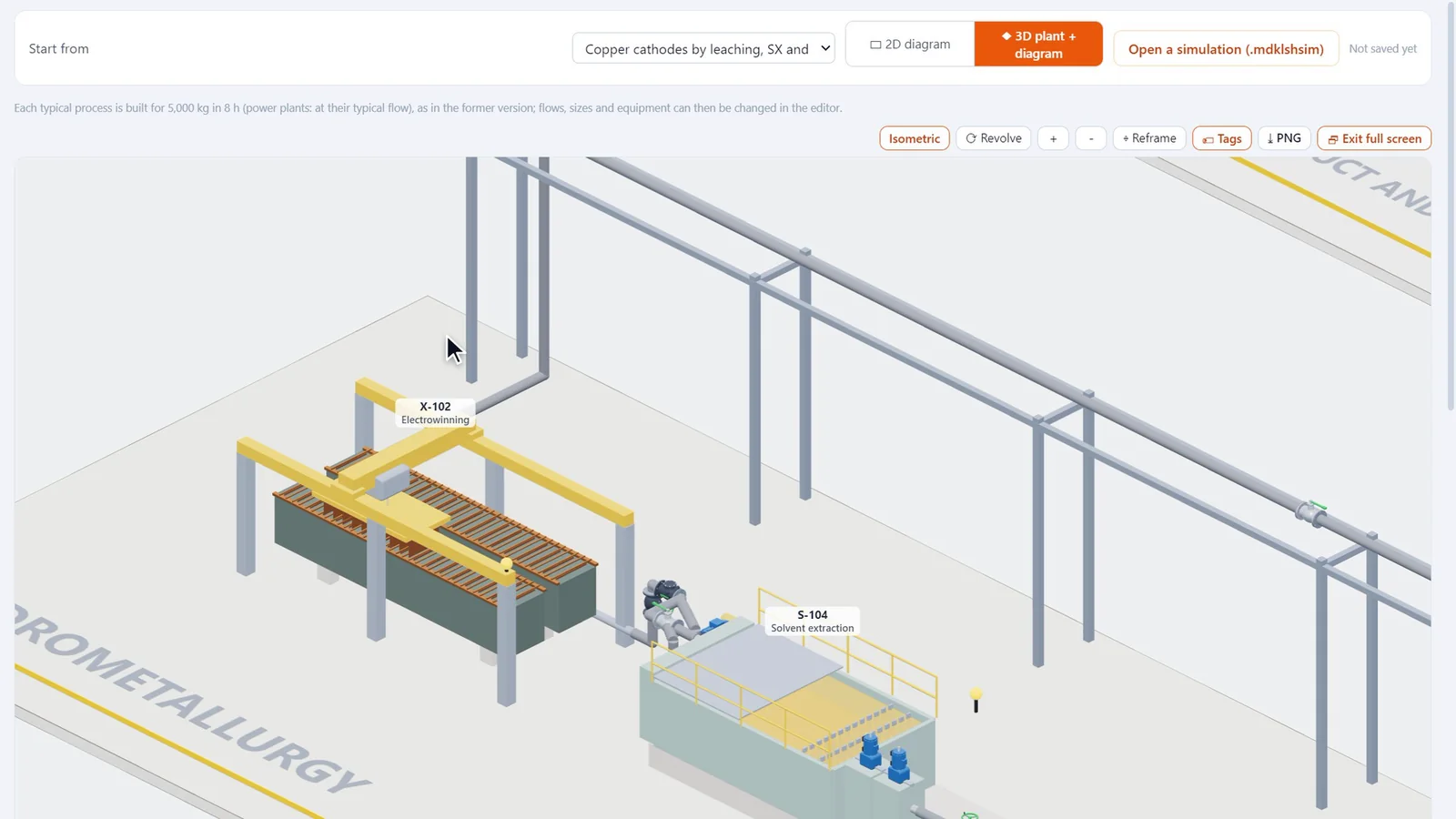

Crushing, grinding, leaching, solvent extraction, electrowinning: the whole copper-cobalt plant is simulated and visible in 3D.
Food processing and breweries
Dairy, brewing, canning, meat and fish, small batches: unit operations, finished product standards and costs.
Engineering education
P&ID simulation with GRAFCET, control loops, pumps and valves: students run a plant with no risk.
Screens
The application as it really is
Screenshots taken in the installed application. Click an image to enlarge it.
Video
MDKLSHProcess in action
A complete walkthrough filmed in the application, from the first screen to the results.
Video language
Contents
What the application contains
Design

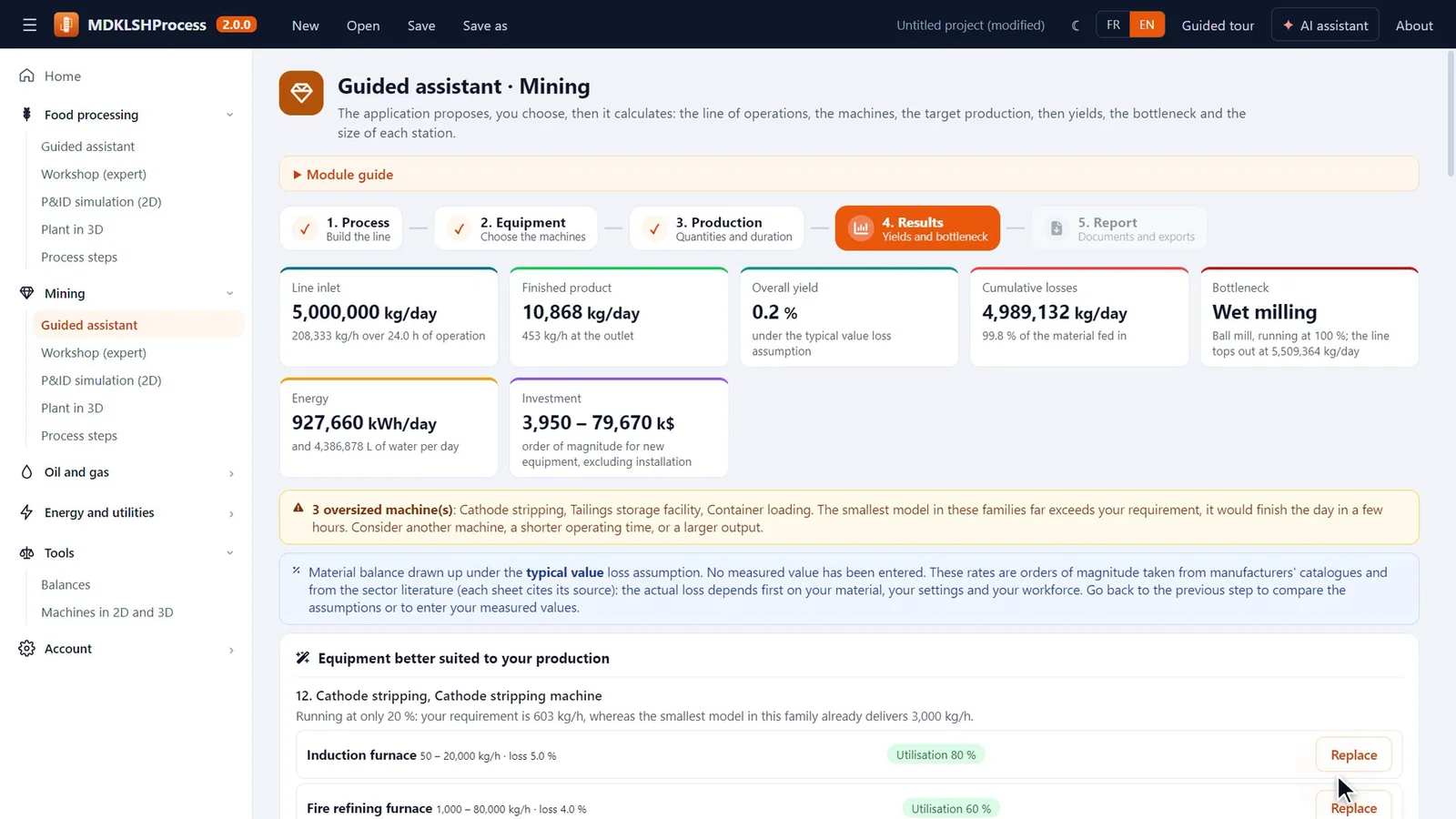

- Guided assistant by sector
- 118 standard processes, 671 pieces of equipment
- Equipment sizing
- Finished product standards
Simulation

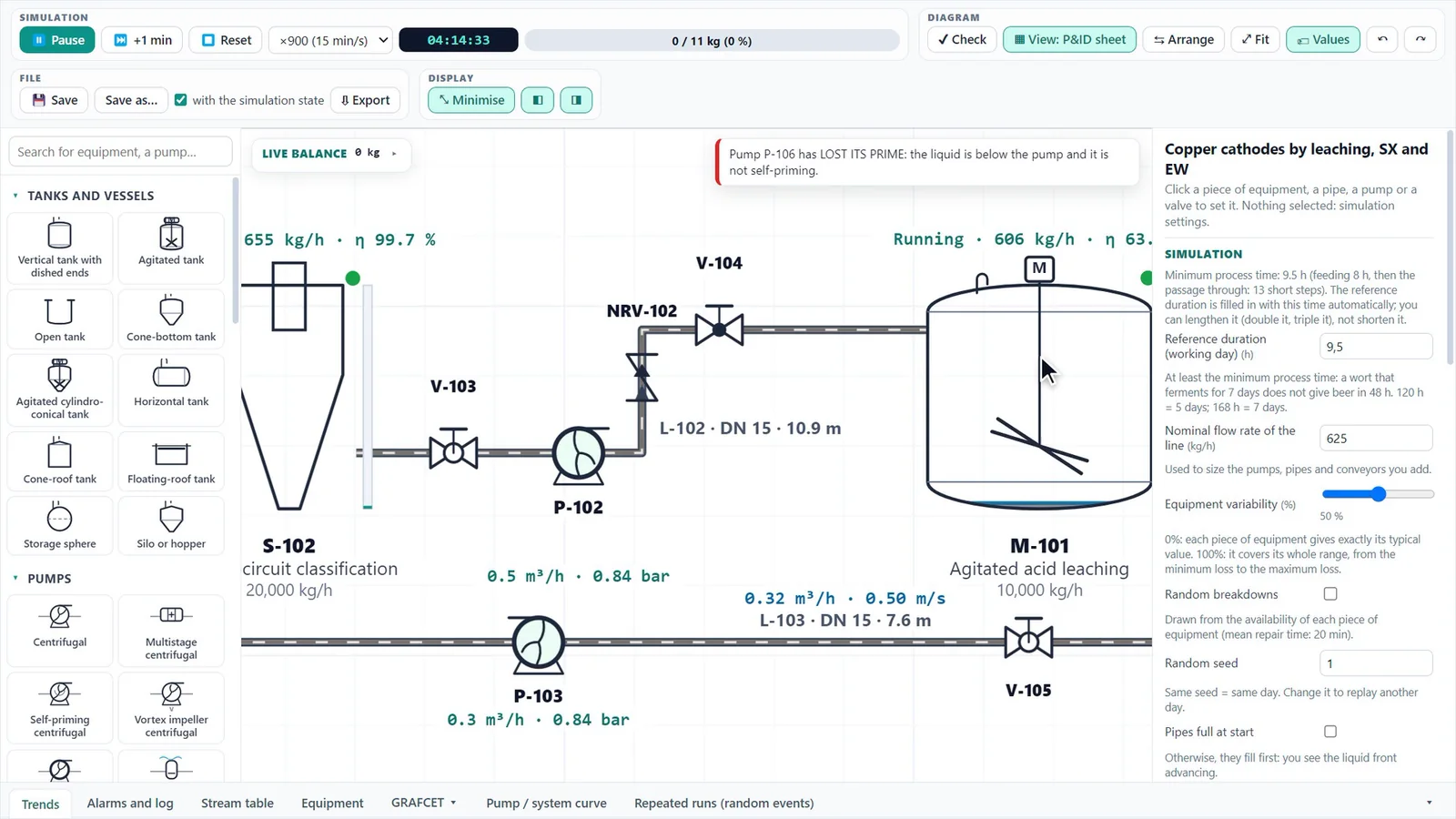

- Dynamic P&ID diagram
- GRAFCET and automatic sequences
- Control loops, alarms, synoptic view
- Complete refinery and copper-cobalt plant
3D

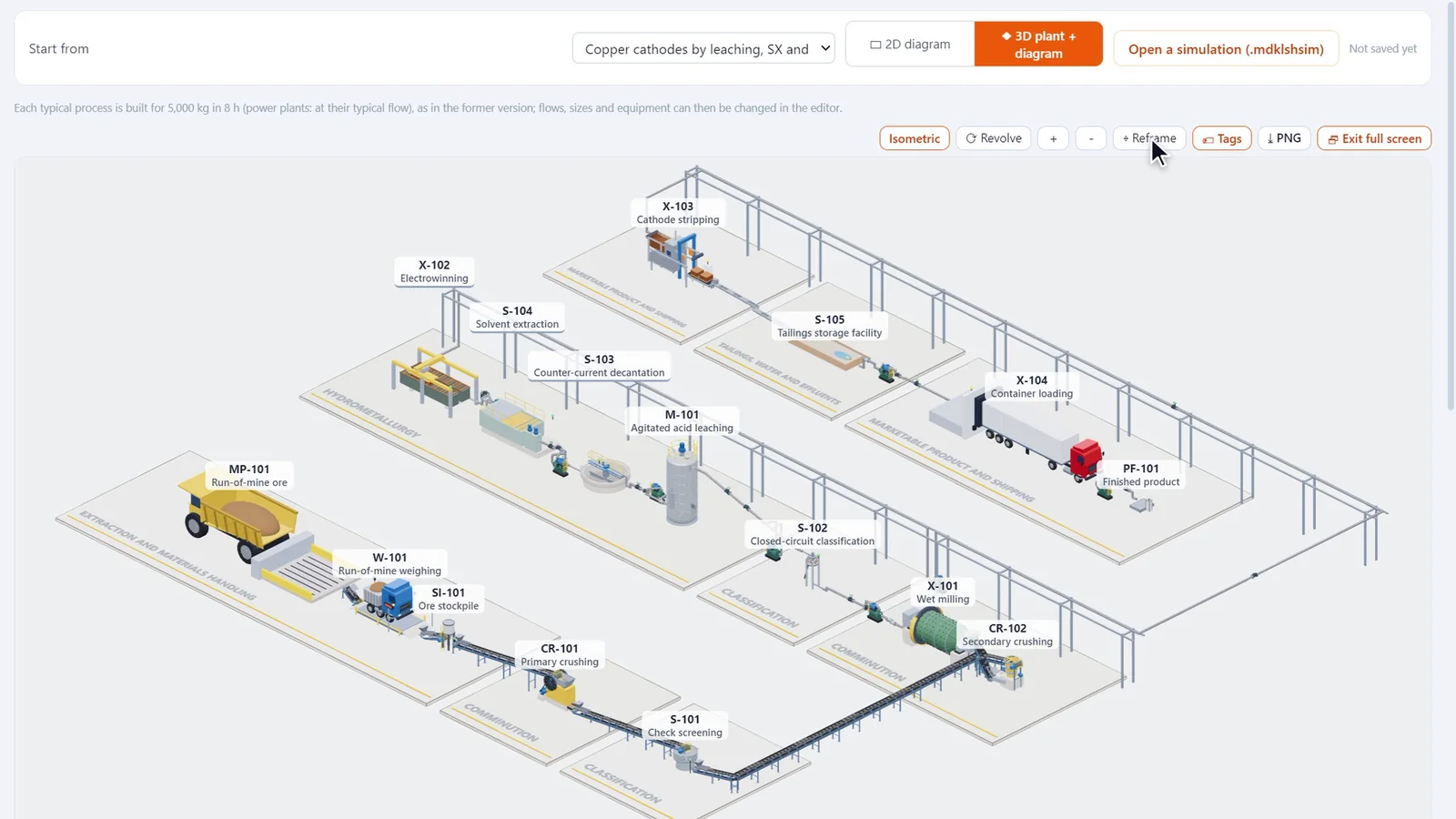

- Whole plant in 3D, isometric or free view

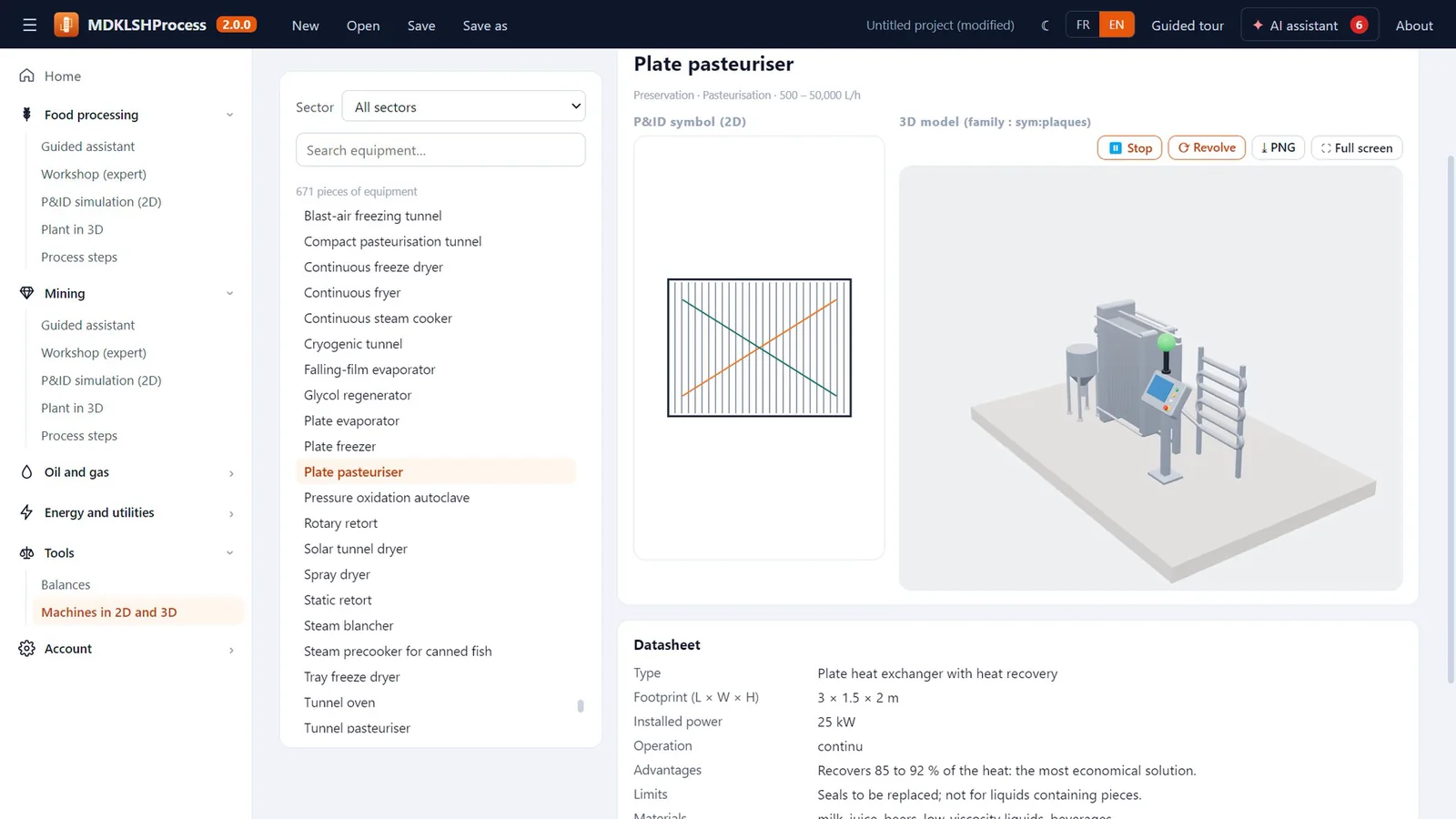

- Equipment in 3D, one by one
- Tags and labels
- High-definition PNG export
Balances and reports

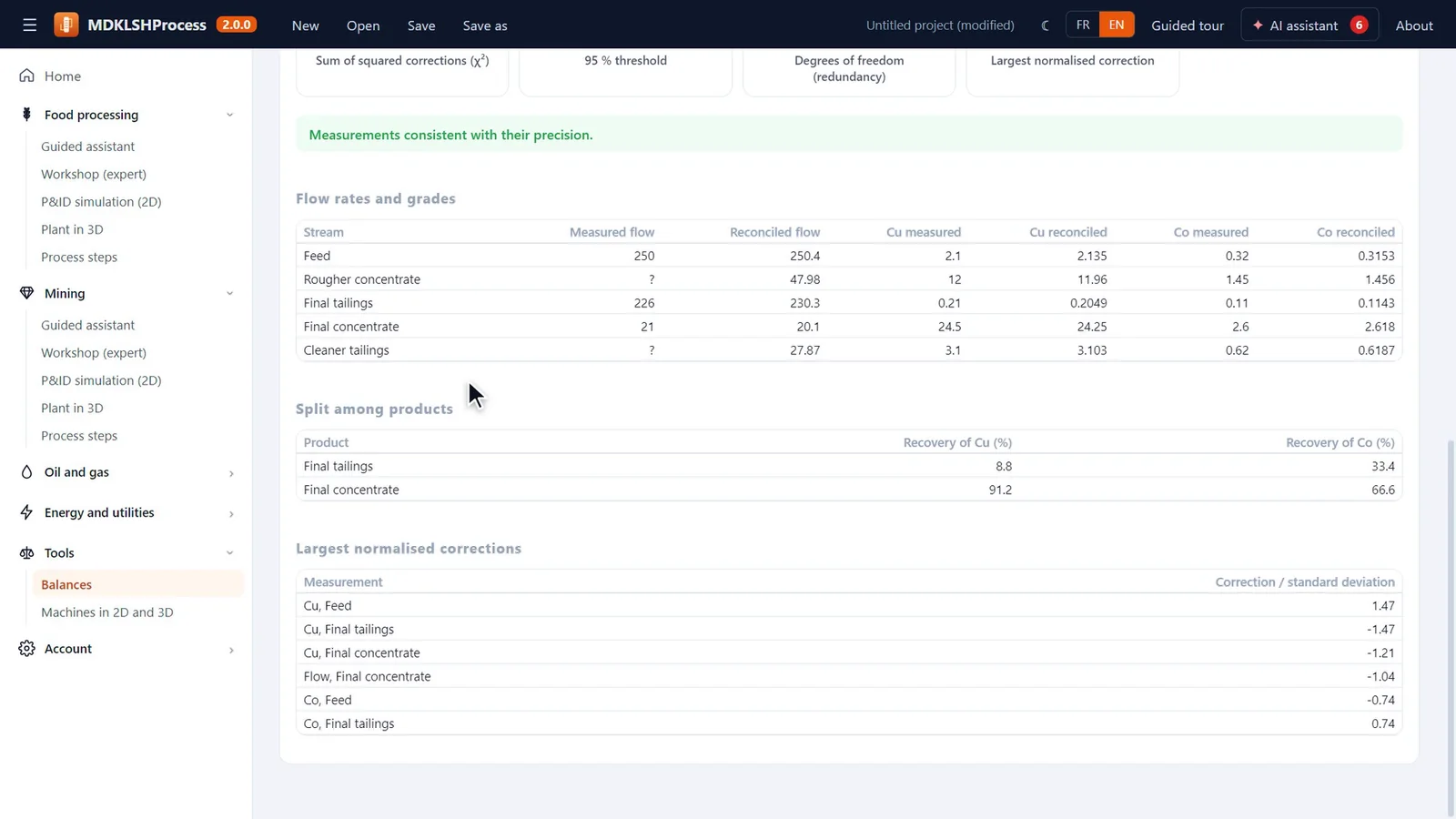

- Mass and energy balances
- Measurement reconciliation
- Complete Word report
- Link with MDKLSH Mine
Highlights
Why choose it
- Four industrial sectors in one application
- From 2D diagram to 3D plant in one click

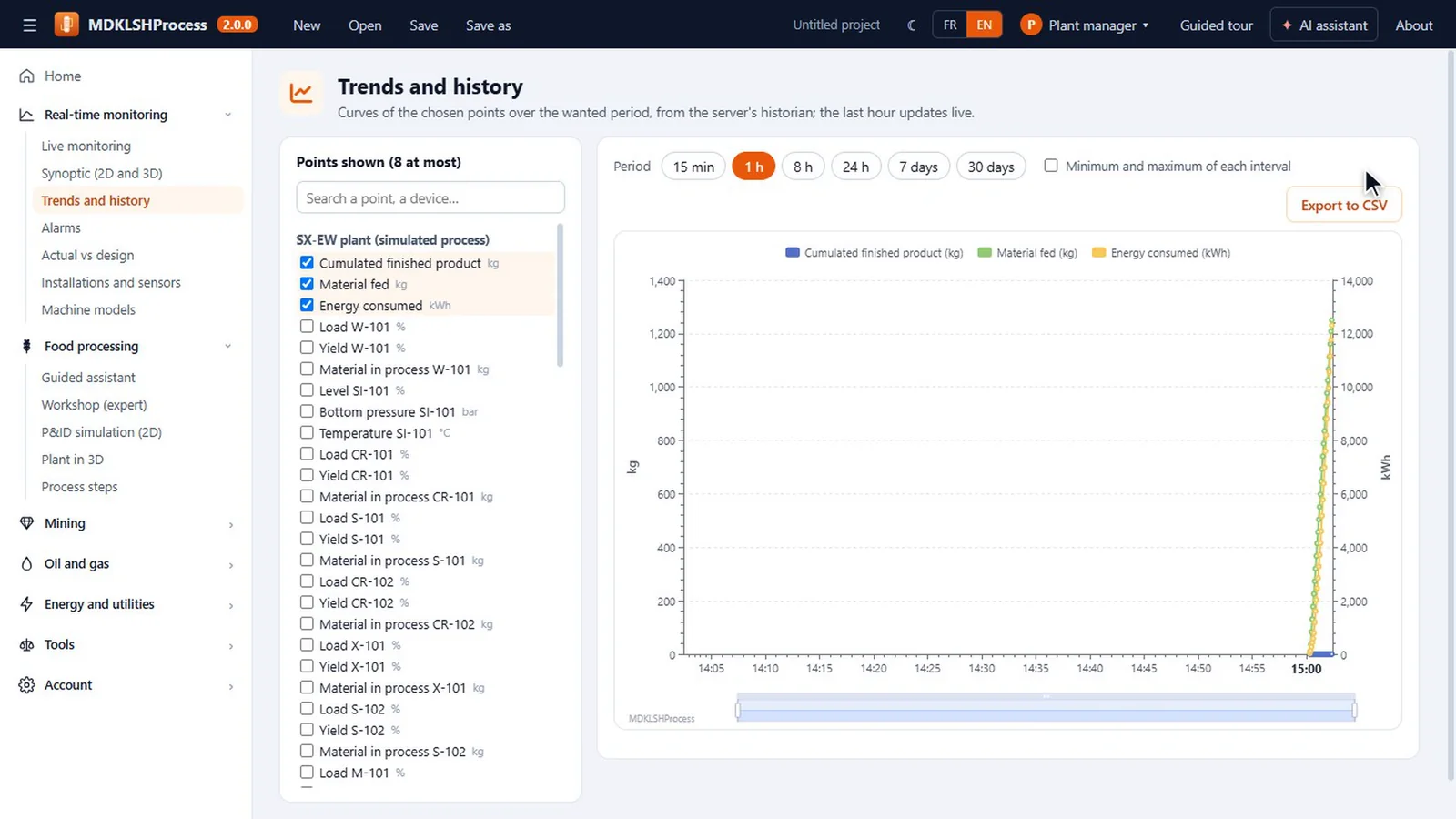

- Server edition: live tracking, trends, alarms

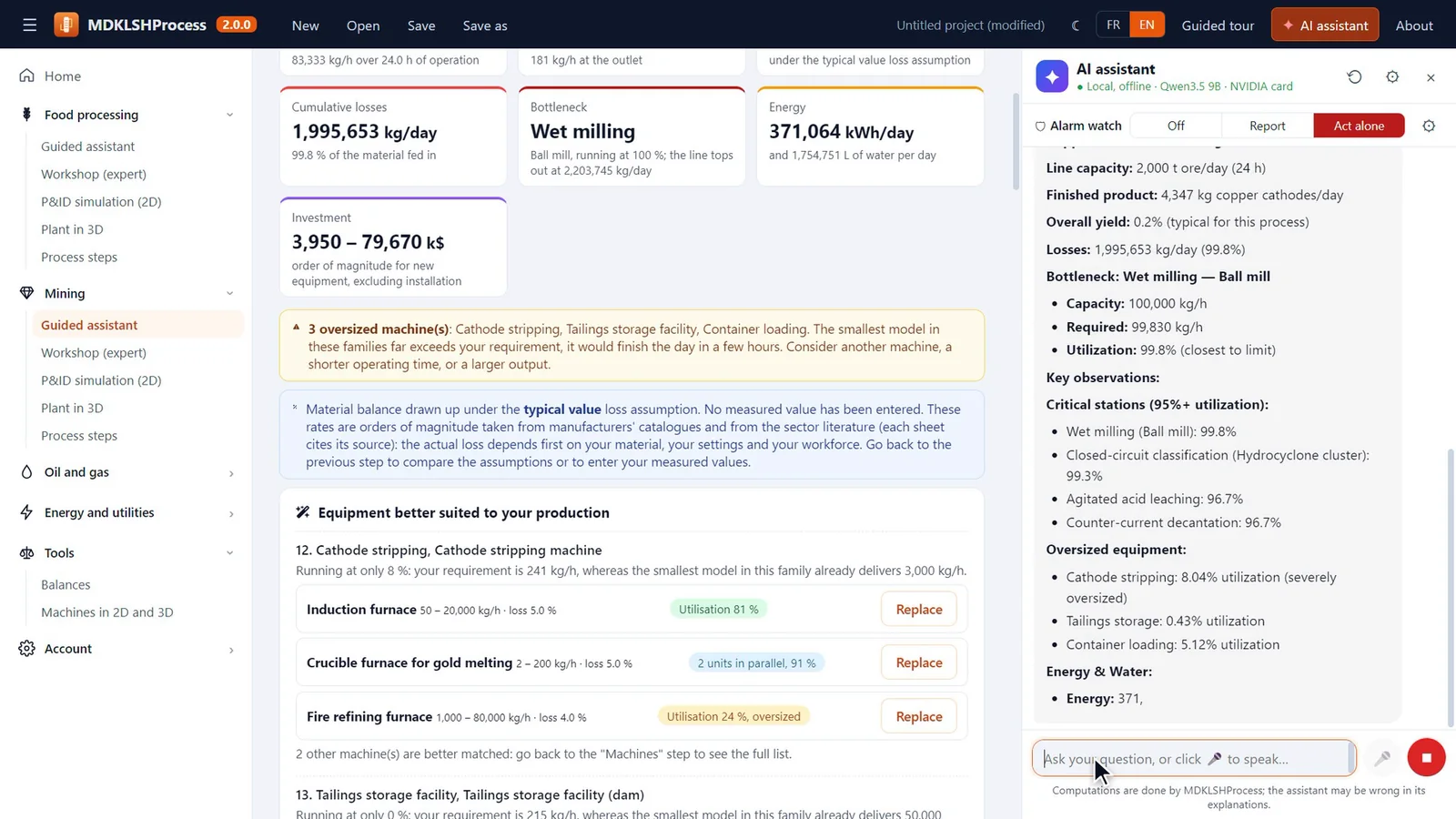

- AI assistant that sizes and runs the process
With the other applications
Works with
What this application exchanges with the rest of the suite.
MDKLSH MineThe pit production plan goes to the plant; plant tailings come back into the site water balance.
MDKLSHStatPlant measurements are analysed in MDKLSHStat: control charts, capability, experimental designs.
MDKLSHChimieEquilibria, thermochemistry and kinetics from chemistry feed reactor sizing.
MDKLSH DiagramsProcedures, HACCP flowcharts and plant org charts sit alongside the process diagrams.Installation
A blue Windows screen during installation? That is expected
Our installers do not carry a publisher's digital signature yet. Windows therefore does not know MDKLSH yet and may show the blue “Windows protected your PC” screen. This message does not mean the file is dangerous: it only reports a publisher that Windows has not registered yet.
To start the installation
- Click “More info”, below the text of the blue screen.
- Check the file name: it starts with MDKLSH and ends with Setup followed by the version number, for example MDKLSHStat-Setup-2.0.0.exe.
- Click “Run anyway”. The installation then starts normally.
If the browser blocks the download
Edge or Chrome may say that a file “isn't commonly downloaded”. Open the downloads list, click “…” then “Keep”, and confirm with “Keep anyway”.
